Asheville ADG-1 SE Analog Delay

The ADG-1 is a special edition of our ADG-1 analog delay. We began with a standard ADG-1 and included the following hand-made modifications and additions:

  • A 3rd high-voltage Xvive™ analog delay bucket has been added, allowing switching between delay times of 16ms-350ms or 50ms-1.055sec (extendable up to 1.35sec with control voltages or expression pedal)
  • The addition of a TRS insert on the delay loop allowing the patching of effects such as EQ or octave pedals into your delayed signal to successively affect the repeats without changing the dry tone
  • Premium “Guitarry Night” metallic shimmer sparkle finish with a high-durability gloss coating
  • Genuine solid aluminum GØRVA Obelisk knobs

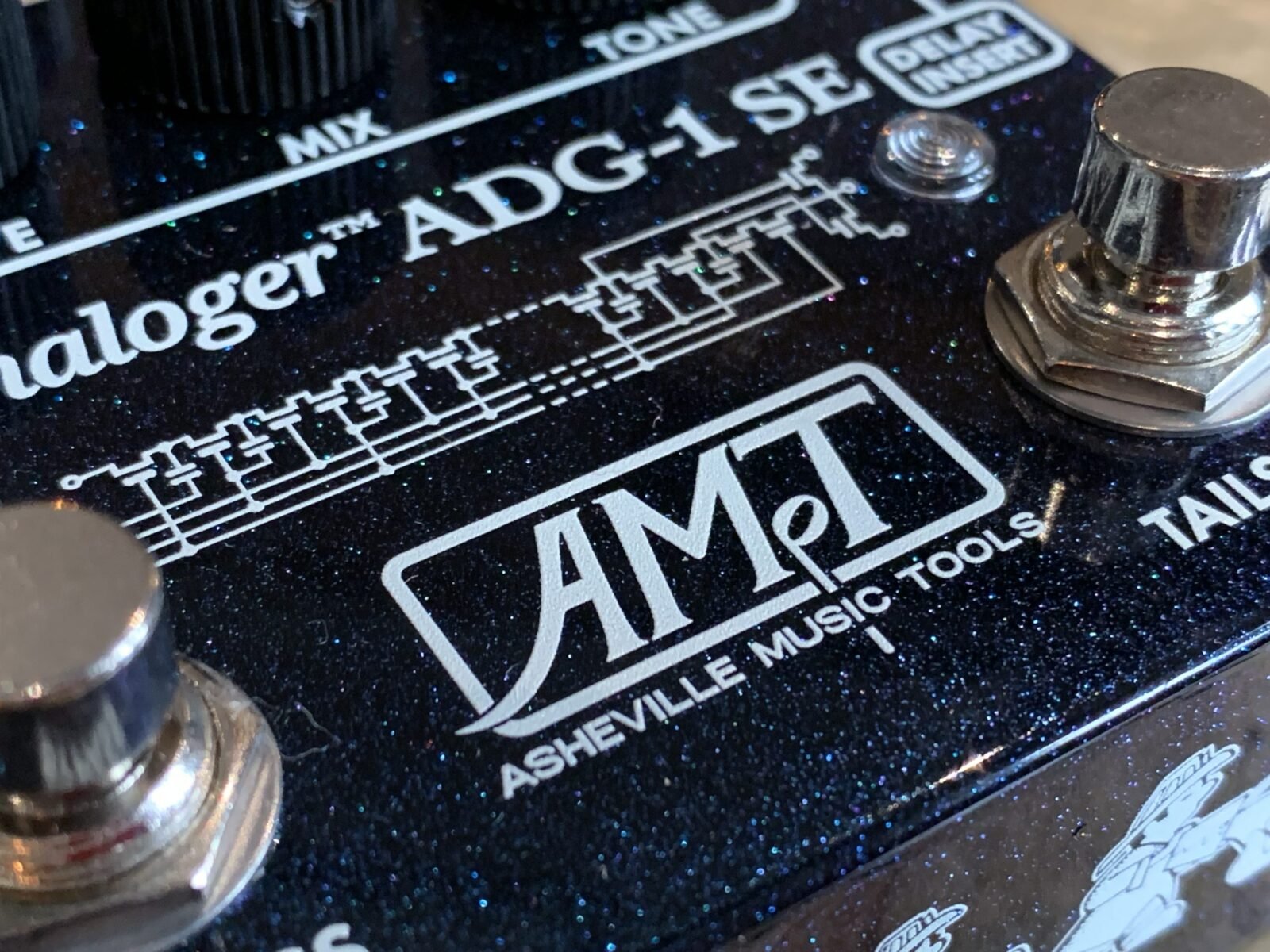

  • Additional side print of our original BBD Bucket firemen.

Leer más >

 729,00 VAT included

In stock

DESCRIPTION

This AMpT goes to 1100 milliseconds!

ADG-1 Special Edition: 100% Analog Delay from 16ms to 1.0555s of delay time with a bonus delay insert loop

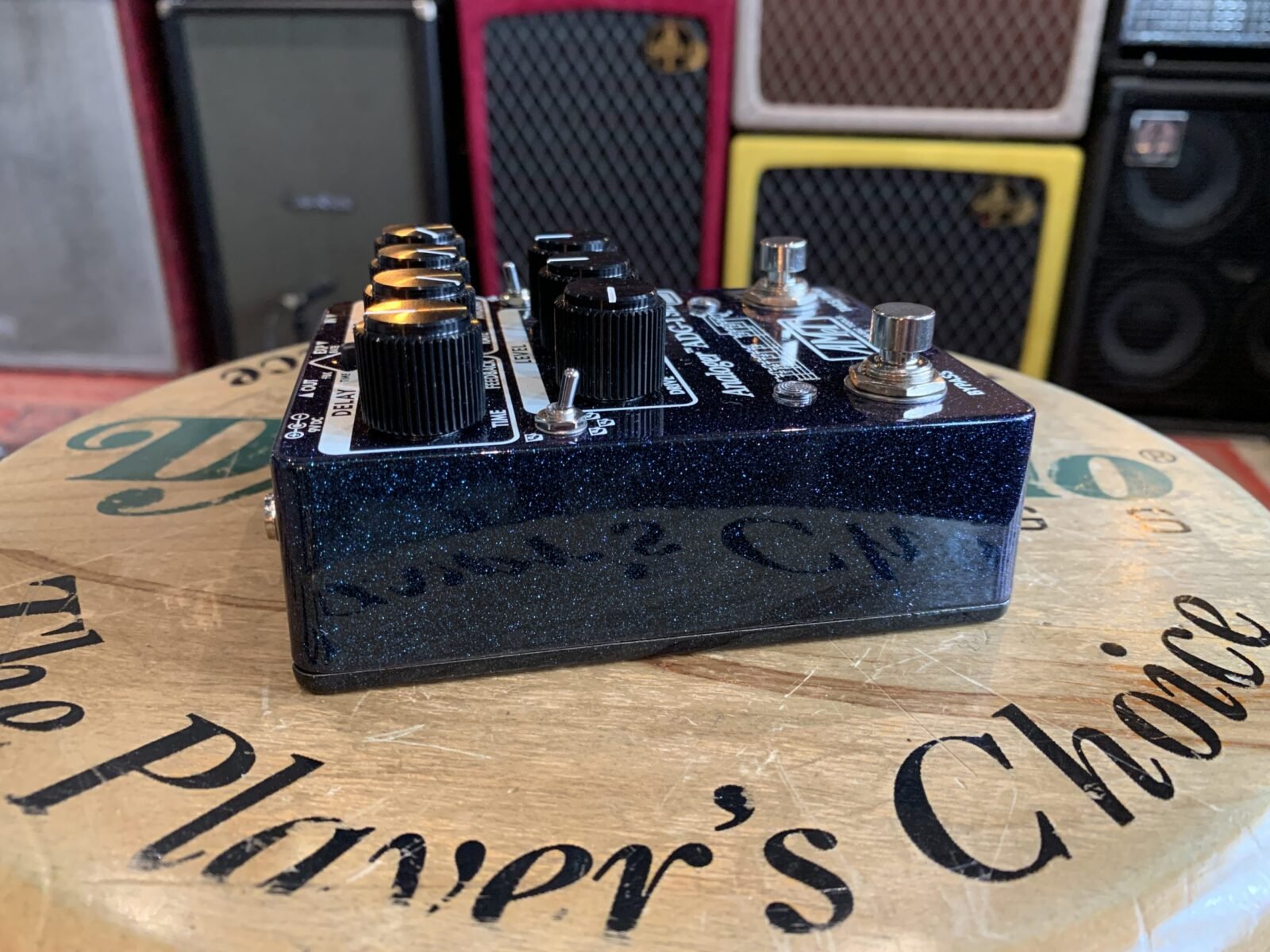

Features our “Guitarry Night” (Chameleon Teal) color-shifting sparkly high gloss finish and genuine solid aluminum GØRVA knobs.

The ADG-1 is a special edition of our ADG-1 analog delay. We began with a standard ADG-1 and included the following hand-made modifications and additions:

  • A 3rd high-voltage Xvive™ analog delay bucket has been added, allowing switching between delay times of 16ms-350ms or 50ms-1.055sec (extendable up to 1.35sec with control voltages or expression pedal)
  • The addition of a TRS insert on the delay loop allowing the patching of effects such as EQ or octave pedals into your delayed signal to successively affect the repeats without changing the dry tone
  • Premium “Guitarry Night” metallic shimmer sparkle finish with a high-durability gloss coating
  • Genuine solid aluminum GØRVA Obelisk knobs
  • Additional side print of our original BBD Bucket firemen.

The ADG-1 is the latest installment in Hawker’s legacy of highly sought-after analog delay designs.  Utilizing a pair of Xvive™ high voltage BBDs, this delay features up to 700ms of harmonically rich, perfectly floating echoes with an extensive and fully analog control set unprecedented for a pedal of its size. From a bright country slapback to washy dotted eight leads to psychedelic modulated odysseys, the ADG-1 is the new standard in compact analog delays.

Technical Details

The ADG-1 includes over 400 carefully selected components. The entire signal chain utilizes premium audio-grade op amps and high-tolerance, non-microphonic capacitors to guarantee high performance, temperature stability, and low noise.

We began with a classic delay architecture using a pair of studio grade Xvive™ MN3005 reissue Bucket Brigade Devices (BBDs) and a high voltage step-up power supply for maximum headroom. We implemented a tightly calibrated vintage-style compander and incredibly deep, discrete transistor, 5th-order anti-aliasing and reconstruction filters to provide a familiar character with superior clarity, noise reduction and dynamic feel. Our feedback circuit uses a voltage-controlled transconductance amplifier, which provides Hawker’s classic feedback tone while offering the most accurate method for dialing in infinite repeats without runaway or for achieving total feedback overload.

The input preamplifier is critical to the sound of any analog effect. A discrete, high impedance, JFET input stage provides consistent operation across all sound sources and can be used as an always-on buffer. The preamplifier and drive circuit can be used to overdrive the delay line and mixer section for unique artifacts and character that only an analog delay can provide.

We spared no opportunity for flexible control while maintaining a completely analog circuit. The clock generation, modulation oscillator, and even the switching logic are all fully analog in nature. Our clock VCO, with temperature compensated exponentiator, drives the BBDs at extremely high current to eliminate artifacts and provide for a clearer sound. An assignable Expression/CV input expands the flexibility to the limits of user creativity: use an expression pedal to warp the delay time, swell in self-oscillating feedback, or add a modulated vibrato flourish in real time.

An effect of this complexity depends entirely on its power supply and input protection. We took every measure possible to eliminate sources of noise and radio frequency interference (RFI/EMI), as well as protect from electrostatic discharge (ESD) spikes to ensure carefree operation in any studio or performance environment. Our step-up high voltage power supply operates in the MHz range, well beyond the audio band and most other pedals. All voltage sources are highly filtered to eliminate noise and crosstalk between the BBD clock, LFO, and other sections with a multi layer PCB utilizing dedicated split power and ground planes. The power input is fully protected from reverse polarity and over-voltage conditions.

Electrical Specifications:

100% Analog signal path

Switchable true bypass or JFET-buffered bypass with switchable trails

Power: 9VDC @ <150mA  (85mA Nominal, up to 250mA start up.)

Expression / CV input assignable to Time, Feedback, Mod Amount, or Mod Rate (CV range is 0-5V). Ring supplied current limited 5V.

Delay time:

35-700ms in dual BBD mode

16-350ms in single BBD mode

27-900ms (or 13-450ms) with external CV control

Input impedance: >1MΩ

Output impedance: 1KΩ Max

Max input level: +15dBu (4.3V RMS)

Max output level: +14dBu (3.9V RMS)

Maximum drive: >22dB (covers attenuation to gain)

Noise Reduction: 2:1 broadband with 12dB HF emphasis

Physical Specifications:

Genuine Hammond™ die-cast aluminum enclosure

Dimensions: D= (12.5 cm), W= (9.4 cm), H= (5.8 cm)

Weight: (0.425kg)
