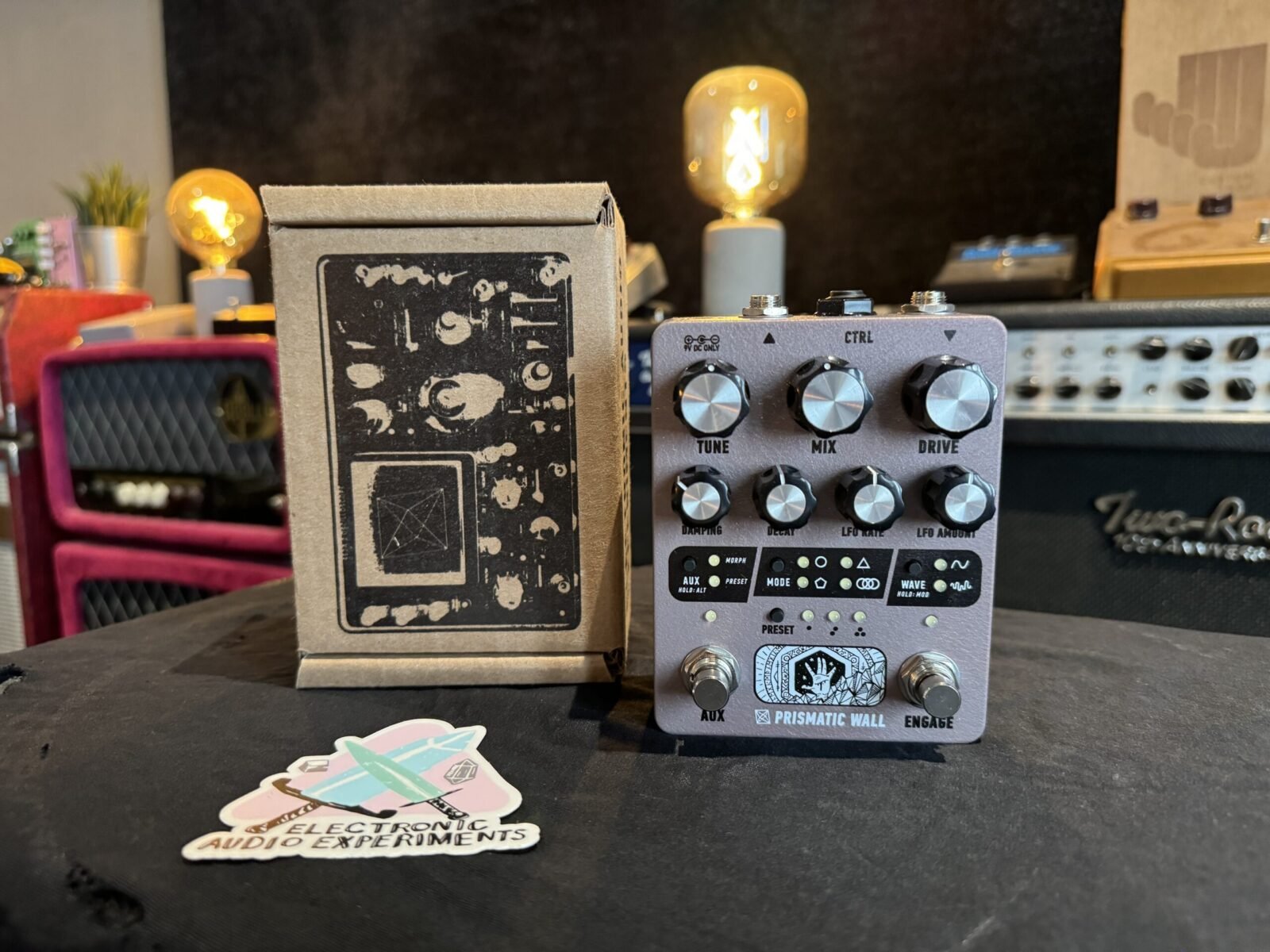

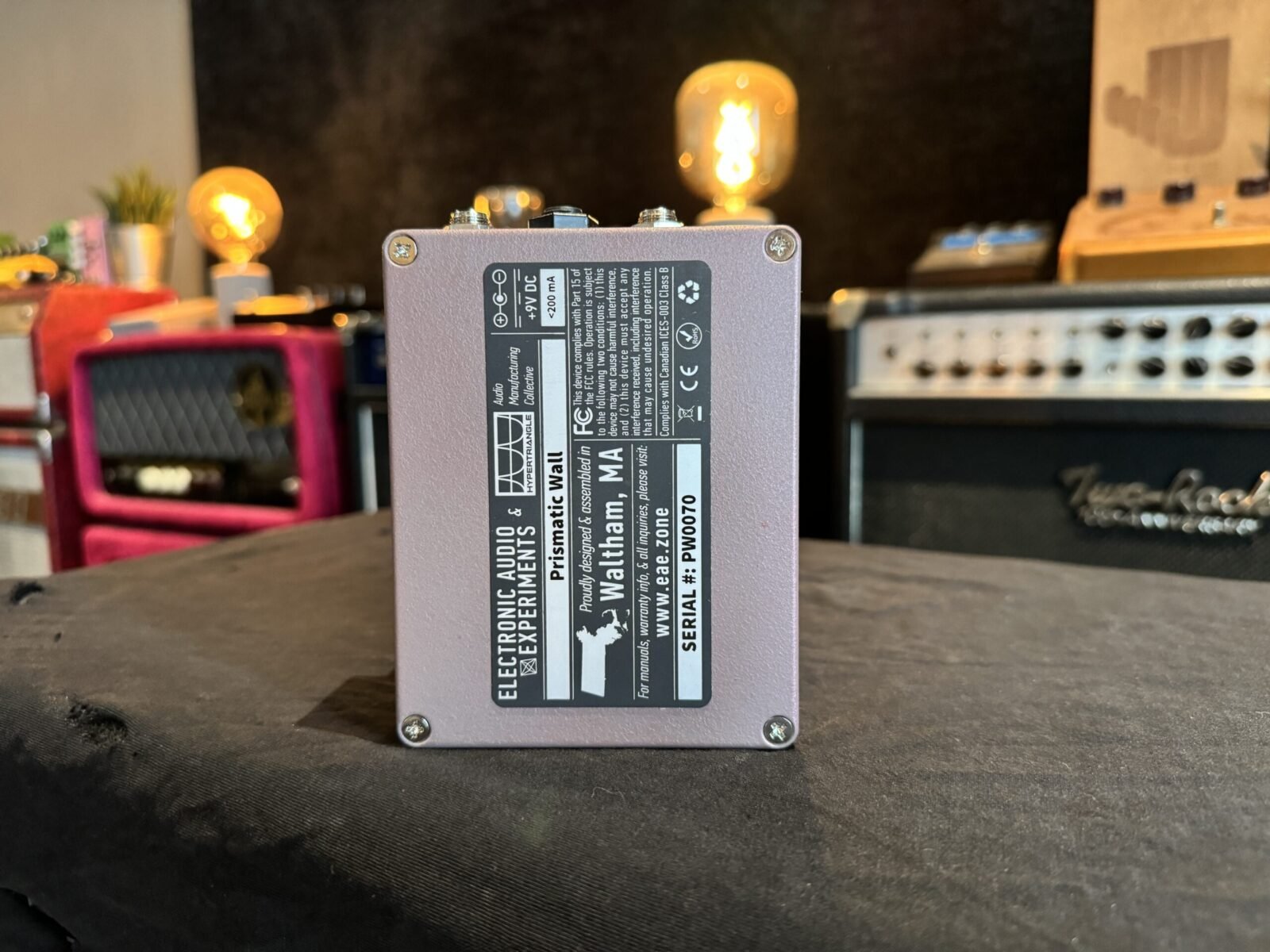

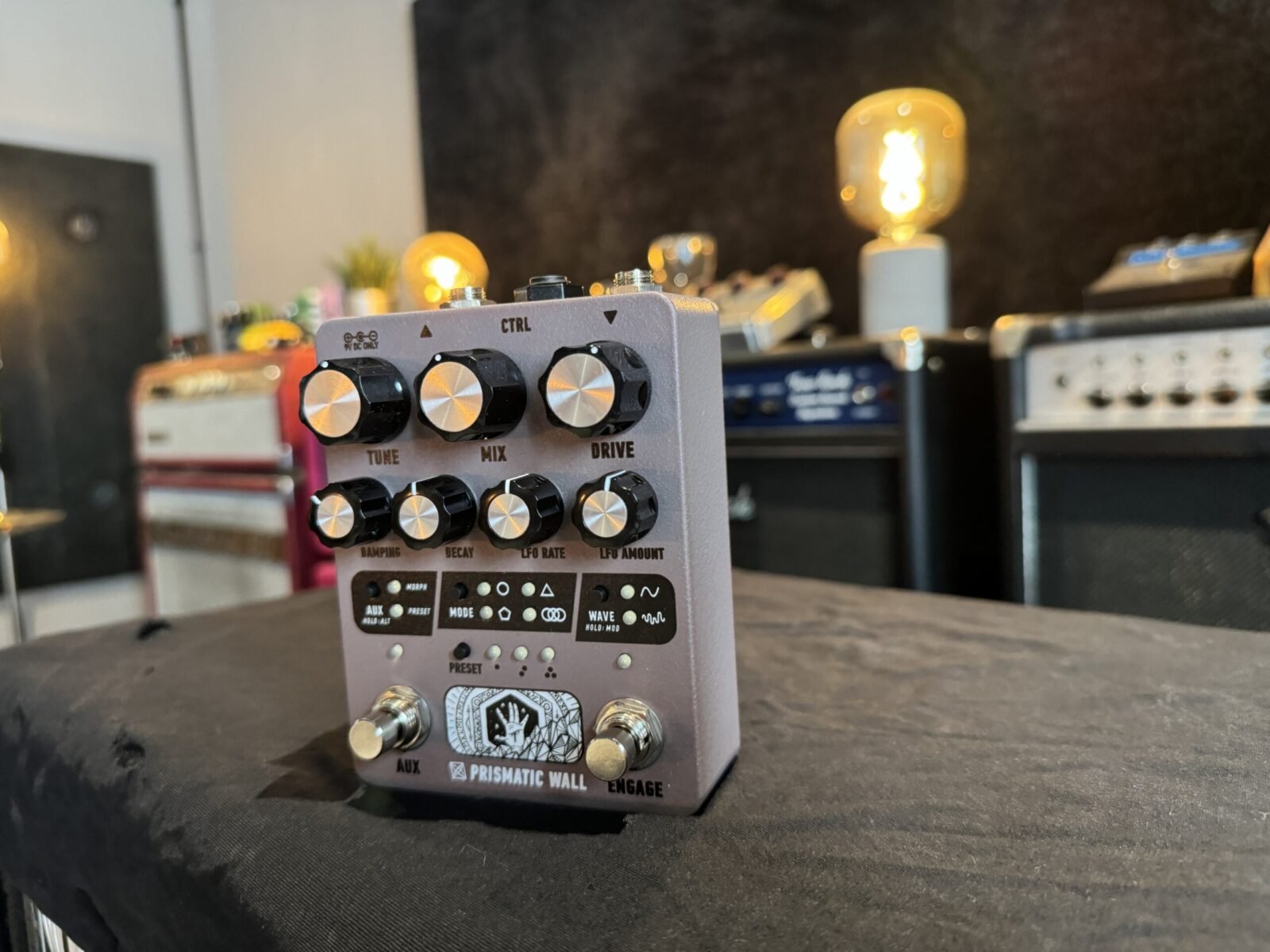

Electronic Audio Experiments Prismatic Wall

Electronic Audio Experiments Prismatic Wall: A Sympathetic Resonator for Sonic Alchemy.

The Prismatic Wall is more than a pedal—it’s a transformative instrument that redefines how you interact with sound. Combining the ethereal qualities of reverb with the harmonic richness of a synthesizer, the Prismatic Wall creates an illusory bank of tuned strings that react to your playing. Whether you’re crafting subtle harmonic textures or lush, chromatic soundscapes, this pedal is your gateway to sonic exploration.

A New Dimension of Sound
The Prismatic Wall uses a physical string model formed by tuned delay lines, allowing it to generate metallic yet warm tones that range from delicate harmonic auras to rich, sustaining drones. Its reactive nature means it responds dynamically to your playing: in-tune notes excite specific pitches, while percussive attacks trigger all strings simultaneously.

Key Features

• Hybrid Analog/Digital Signal Processing: Combines 24-bit variable sample rate DSP with analog saturation and filtering for a unique, timeless sound.
• Morphing Functionality: Seamlessly transition between two settings using the Aux footswitch or an expression/CV source.
• MIDI Control: Full MIDI implementation for all parameters, including presets and LFO modulation.
• LFO with Multiple Waveforms: Choose from periodic or random waveforms to modulate parameters like pitch and decay.
• 16 Preset Slots: Save and recall your favorite settings with ease.
• High Headroom Analog Dry Path: Maintains signal integrity while blending wet and dry signals.
• Performance-Friendly Design: Intuitive controls and intelligent footswitch behavior make it ideal for live use.

Controls at a Glance

• Tune: Adjust the pitch of the resonators across a four-octave range.
• Mix: Blend between wet and dry signals.
• Drive: Set the input level driving the resonators, with overload for added saturation.
• Damping: Control the high-frequency decay of the resonators.
• Decay: Adjust the overall decay time, with infinite drone capabilities at higher settings.
• LFO Rate & Amount: Modulate parameters like pitch and decay with the onboard LFO.
• Mode Button: Select from four string spacing modes: single with harmonic overtones, stacked neutral thirds, stacked fifths, and chromatic.
• Wave Button: Choose between periodic and random LFO waveforms.

Technical Specifications

• Bypass: Electronic bypass with buffered or Trails modes
• Input Impedance: 1MΩ @ 1kHz
• Output Impedance: 1kΩ @ 1kHz
• Power: 9V DC (center-negative, 2.1mm jack), 120mA max (200mA recommended)
• Dimensions: Compact and pedalboard-friendly

Unleash Your Creativity
The Prismatic Wall is a distinct instrument that refracts your musical intent into multifaceted harmonic colors. Whether you’re crafting ambient soundscapes, experimental textures, or immersive drones, this pedal is your ultimate tool for sonic exploration.

Explore the Prismatic Wall Today
Ready to transform your sound? Visit onemorepedal.com to make the Prismatic Wall your next essential pedal.

Prismatic Wall pedal is a sympathetic resonator pedal, experimental reverb and ambient guitar effects.
