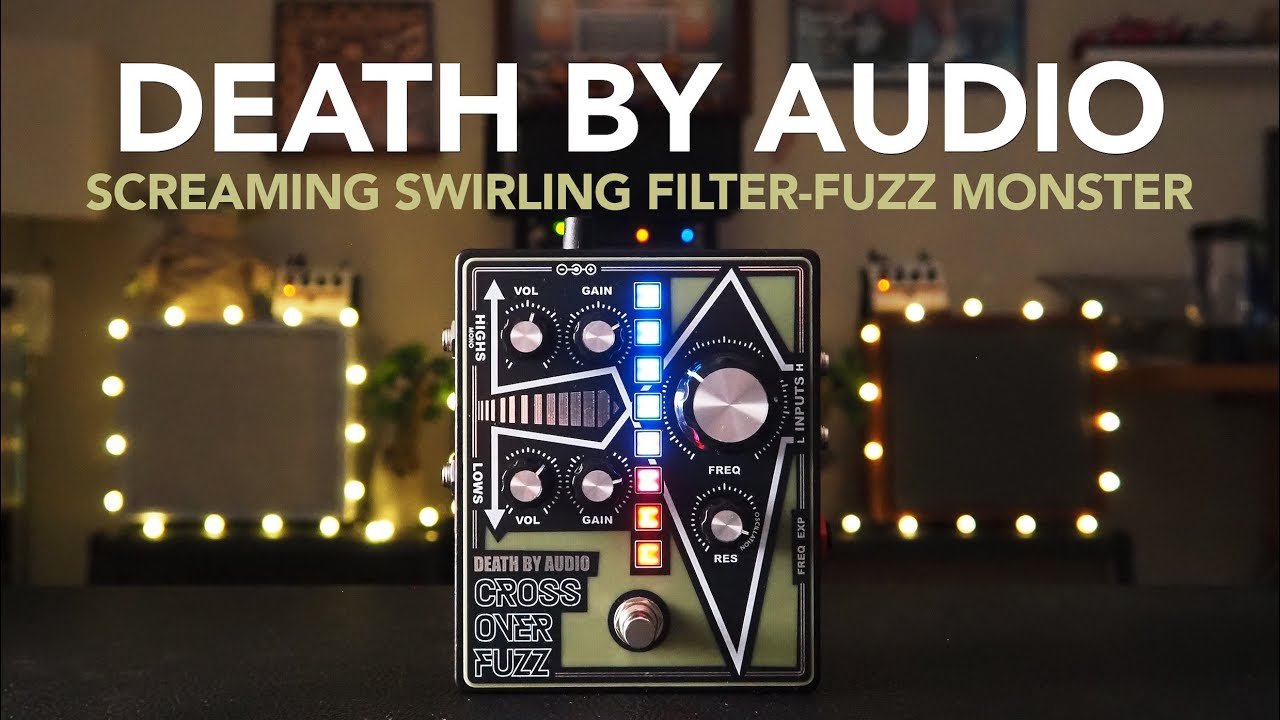

CROSSOVER FUZZ: Multidimensional Frequency-Splitting Fuzz
Dual Analog Band | Linked Resonant Filters | Flexible I/O | CV/Expression Input

Fuzz So Heavy It Had to Be Split: The Filter-Frequency Monster
The Crossover Fuzz isn’t just another fuzz pedal: it’s a multidimensional engine that takes your signal, splits it into high and low frequencies, and demolishes each band separately with Death By Audio’s signature fuzz. Like a crossover circuit on a rampage, it gives you independent control over each half of your sound, letting you shape, destroy, and reimagine your tone like never before. Its linked analog resonant filters sweep the spectrum with surgical precision or oscillating chaos, while independent High and Low inputs/outputs open possibilities for creative routing, amp splitting, and stereo panning that slings frequencies across the room.

Key Features

• Savage Dual-Band Fuzz: Splits and destroys high and low frequencies separately

• Linked Analog Filters: High-pass and low-pass controlled in tandem (30Hz-7.6kHz / 80Hz-17kHz)

• Independent Gain & Volume: Total control over each side of the spectrum

• Flexible I/O Routing: Mono, stereo, amp splitting or signal summing configurations

• CV/Expression Input: Modulates crossover point in real time for automated sweeps

• Reactive LED Display: Color shifts based on filter position (two internal color sets)

• Deadly Resonance: From subtle sweeps to screaming frequency spikes

Controls and Creative Configurations

• FREQ: Controls both filters in tandem for coordinated sweeps

• RES: Adjusts resonance from smooth to aggressive oscillation

• GAIN HIGH/LOW: Independent gain for each band

• VOL HIGH/LOW: Independent volume for each band

• FREQ EXP: Expression or CV (0-5V) connection on side jack

Operation Modes

• Mono: Sums both bands into HIGHS MONO output

• Stereo to Mono: Two inputs summed into single output

• Mono to Stereo: Splits signal to two outputs (lows and highs)

• Full Stereo: Complete channel separation

Technical Specifications

• Power: 9VDC (2.1mm center negative) | Current Draw: 120mA

• Dimensions: 5.73″ x 5.2″ x 2.37″ (generous format for full controls)

• Weight: 18.5 oz | Construction: Tour-grade, hand-assembled

• Filters: Low-pass 30Hz-7.6kHz, High-pass 80Hz-17kHz

• LED: Two color sets selectable internally (“Sky Light” or “Cyber Light”)

Reimagine What a Fuzz Can Do

From precisely sculpted tones to controllable resonant chaos. Visit onemorepedal.com to bring dimensional fuzz splitting to your setup.

“Not a fuzz pedal… it’s a frequency destruction laboratory.”
