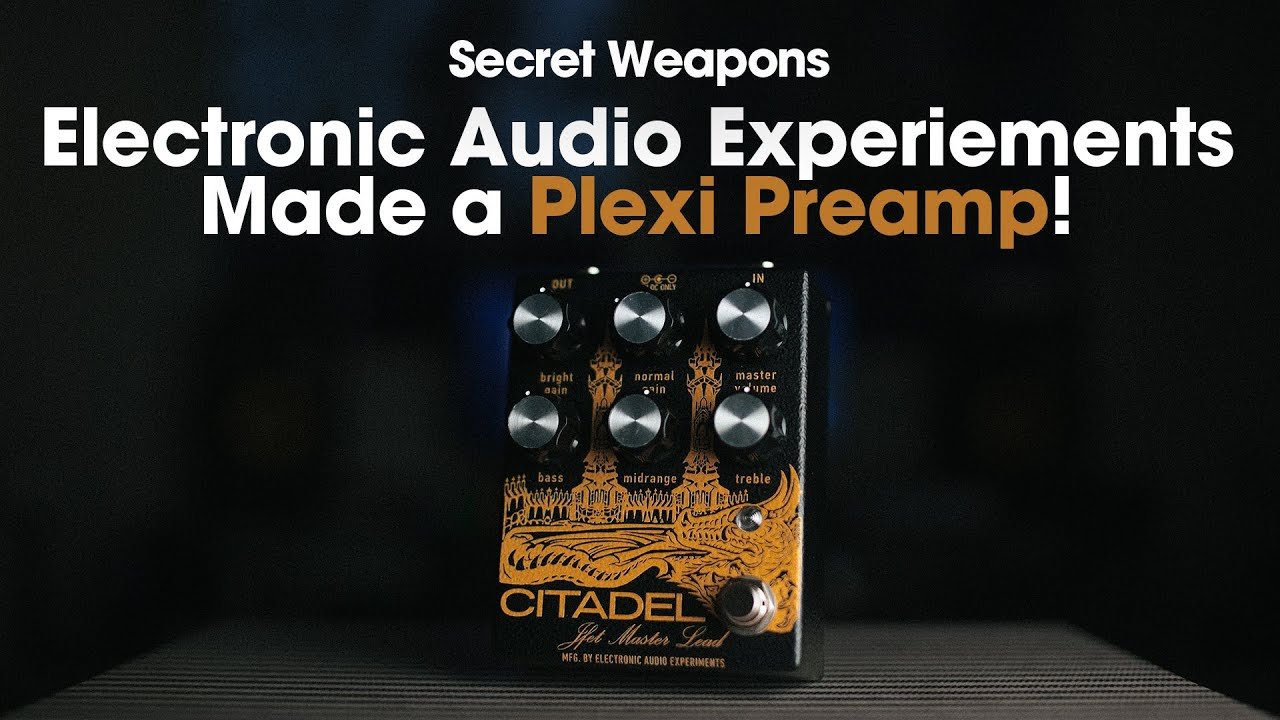

Electronic Audio Experiments Citadel

Electronic Audio Experiments Citadel Preamp-style overdrive inspired by 60s/70s British amps (ampless-ready)

Parallel Bright/Normal channels · “Re-plexi-fied” Model T vibe · Emulates preamp + power amp · 3-band FMV tone stack · Relay true bypass · 9V (65 mA)

The Electronic Audio Experiments Citadel is a preamp-style overdrive inspired by the enduring sounds of 60s and 70s British amplifiers—not a single model, but the best parts of an era: warm piano-like cleans, bright clear overdrive, and sizzling lead tones.

Citadel grew out of experiments around the Model feT, asking “what if we flavor this concept our own way?” You can think of it as a re-plexi-fied Model T idea: trading low-end sludge for a more sparkly, mid-focused voice while keeping punch and authority. In another sense, it’s what EAE would do if the original Model T wasn’t too sacrosanct to modify.

Like the Model feT, Citadel emulates both the preamp and power amp sections of a tube amp, delivering a full-bodied drive that feels powerful and takes boosts, drives, and fuzzes in front exceptionally well. Use it as a conventional drive pedal or as the workhorse of an ampless signal chain.

Key features

• Preamp-style overdrive inspired by 60s/70s British amp character
• Era-spanning voicing: warm cleans, bright OD, sizzling leads
• “Re-plexi-fied Model T” concept: less sludge, more mid sparkle and focus
• Emulates preamp + power amp behavior for amp-like feel
• Two parallel gain channels:
  • Bright (chime/sparkle)
  • Normal (darker, full-bodied)
• Authentic amp EQ: 3-band FMV (Fender/Marshall/Vox) tone stack
• Designed to stack well with boosts/drives/fuzzes in front
• Relay switching with true bypass, high available output via Master

Technical specifications

• Bypass: relay switching with true bypass
• Input impedance @ 1 kHz: 500 kΩ
• Output impedance @ 1 kHz: 1 kΩ
• Power: 9V DC, 2.1 mm center negative
• Current draw: 65 mA
• Recommended PSU: regulated, isolated, 100 mA minimum
• Battery: not supported
• Version: V1 (initial release, Dec 2022)

Controls

• Bright Gain: adds gain from the Bright channel (chime/sparkle); fully muted at zero
• Normal Gain: adds gain from the Normal channel (dark/full); fully muted at zero
• Bass / Midrange / Treble: FMV tone stack, moderately mid-scooped and subtle; best from clean to medium gain
  • For a flatter pedal-style voicing: Midrange max, Bass and Treble at zero
• Master: overall output level, capable of very high volume

Find the EAE Citadel and a carefully curated selection of boutique pedals at onemorepedal.com, your specialist store for high-end effects.

A British amp era distilled into a pedal: sparkle, body, and real response.
